Things used in this project
This is my simple LED panel. I used 6 LEDs, each with a power of 10W. 3 LEDs are warm and cold 3 LEDs. The entire project, you can also see here: 60W LED lights panel for 5$
Step 1: Components
- Baking Pan
- 6 x LED 10W
Step 2: Drilling Holes in the Form of Dough

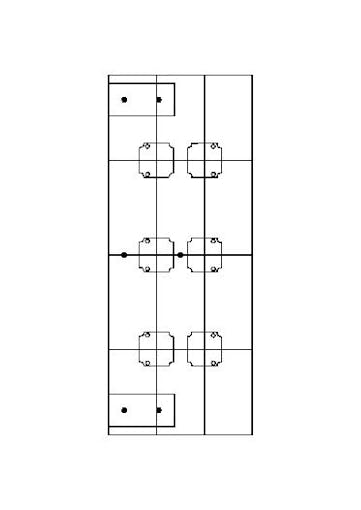

To make it easier to drill, I prepared a pattern in a graphics program.

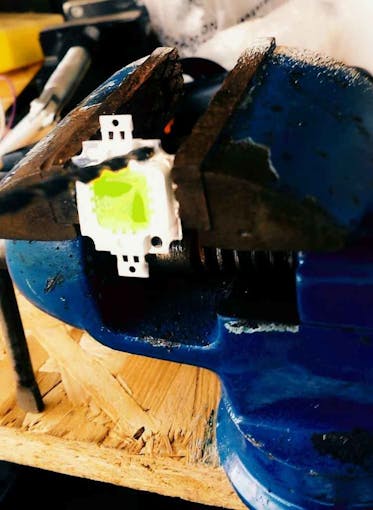

Step 3: Drilling Holes in LEDs
Because I have 3 mm screws and 2.5 mm holes in the LEDs, then I need to drill to 3 mm.

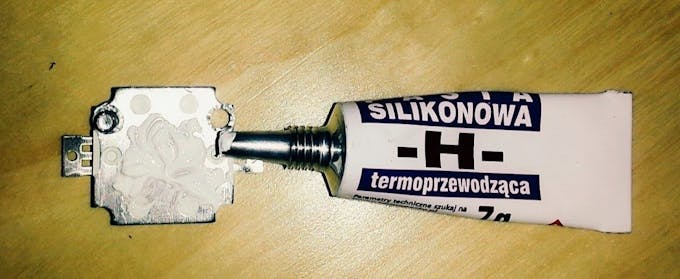

Step 4: Mount LEDs to the Cake Mold

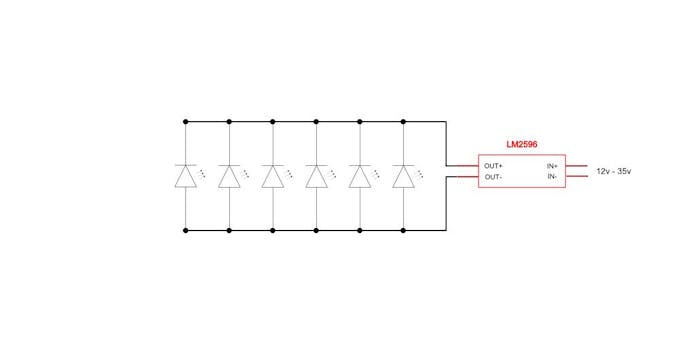

Step 5: Soldering Wires and LM2596

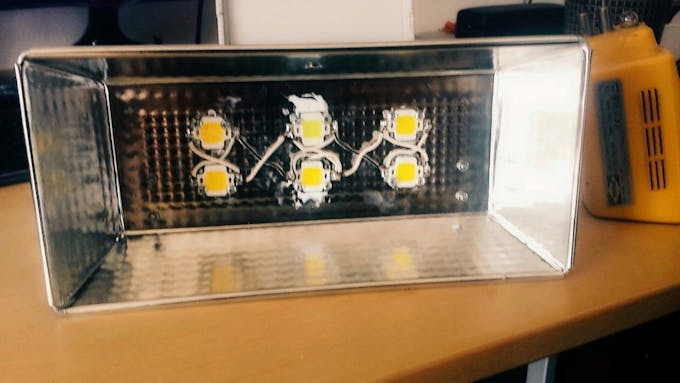

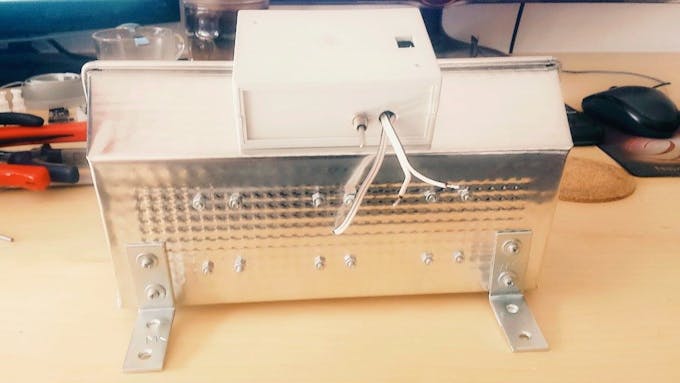

Step 6: 60W LED Panel Ready for Use
To test it, I used a 14.4V battery to power the LED panel.
